IRM-3640N3F4, IRM-3638N3F4, Infrared Remote-control Receiver

EVERLIGHT ELECTRONICS CO.,LTD.Technical Data Sheet Infrared Remote-control Receiver Module IRM-36xxN3F4 SERIES .
The device is a miniature type infrared remote control system receiver which has been developed and designed by utilizing the most updated IC technol.

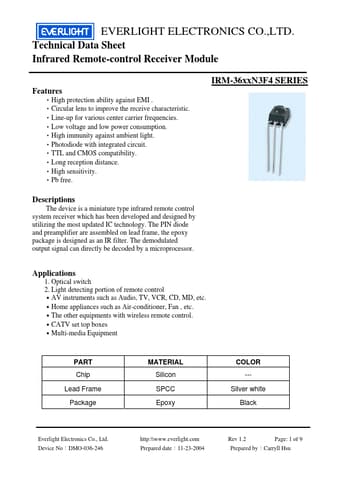

datasheet Preview Page 1 from Datasheet4u.com

IRM-3638N3F4_Everlight.pdf

IRM-3640N3F4 Datasheet Preview — This datasheet PDF includes multiple part numbers: IRM-3640N3F4, IRM-3638N3F4. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRM-3640N3F4, IRM-3638N3F4

Manufacturer:

Everlight

File Size:

282.03 KB

Description:

Infrared Remote-control Receiver

Note:

This datasheet PDF includes multiple part numbers: IRM-3640N3F4, IRM-3638N3F4.
Please refer to the document for exact specifications by model.

Features

* ‧High protection ability against EMI . ‧Circular lens to improve the receive characteristic. ‧Line-up for various center carrier frequencies. ‧Low voltage and low power consumption. ‧High immunity against ambient light. ‧Photodiode with integrated circuit. ‧TTL and CMOS compatibility. ‧Long receptio

Applications

* 1. Optical switch 2. Light detecting portion of remote control ․AV instruments such as Audio, TV, VCR, CD, MD, etc. ․Home appliances such as Air-conditioner, Fan , etc. ․The other equipments with wireless remote control. ․CATV set top boxes ․Multi-media Equipment PART Chip Lead Frame Package MATER
