CLC2000

High Output Current Dual and Quad Amplifiers

CLC2000 Features

* n 9.4Vpp output drive into RL= 25Ω n Using both amplifiers, 18.8Vpp differential output drive into RL= 25Ω n ±200mA @ Vo = 9.4Vpp n 0.009%/0.06˚ differential gain/ phase error n 250MHz -3dB bandwidth at G = 2 n 510MHz -3dB bandwidth at G = 1 n 210V/μs slew rate n 4.5nV/√Hz input voltage

CLC2000 General Description

The Comlinear CLC2000 and CLC4000 are dual and quad voltage feedback amplifiers that offer ±200mA of output current at 9.4Vpp. The CLC2000 and CLC4000 are capable of driving signals to within 1V of the power rails. When connected as a differential line driver, the amplifier drives signals up to 18.8.

CLC2000 Datasheet (776.03 KB)

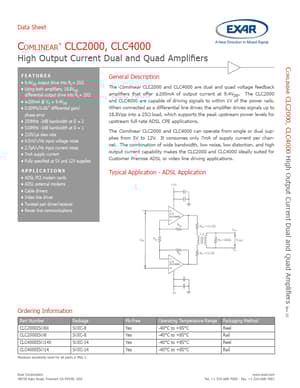

Preview of CLC2000 PDF

Datasheet Details

Part number:

CLC2000

Manufacturer:

Exar

File Size:

776.03 KB

Description:

High output current dual and quad amplifiers.
Comlinear CLC2000, CLC4000 High Output Current Dual and Quad Amplifiers Rev 1D Data Sheet Comlinear® CLC2000, CLC4000 High Output Current Dual and Q.
