CLC2058

Dual 4V to 36V Amplifier

CLC2058 Features

* n Unity gain stable n 100dB voltage gain n 5.5MHz gain bandwidth product n 0.5MΩ input resistance n 100dB power supply rejection ratio n 95dB common mode rejection ratio n 4V to 36V single supply voltage range n ±2V to ±18V dual supply voltage range n Gain and phase match between amps n CL

CLC2058 Datasheet (1.35 MB)

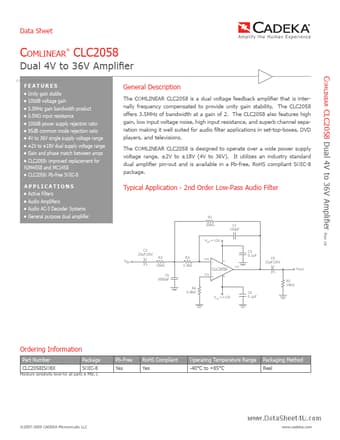

Preview of CLC2058 PDF

Datasheet Details

Part number:

CLC2058

Manufacturer:

Cadeka

File Size:

1.35 MB

Description:

Dual 4v to 36v amplifier.
Data Sheet A m p l i fy t h e H u m a n E x p e r i e n c e ® Comlinear CLC2058 www.datasheet4u.com Dual 4V to 36V Amplifier Comlinear CLC2058.
