CLC2601 Datasheet - Cadeka

(CLCx601) 550MHz Amplifiers

CLC2601 Features

* n 0.1dB gain flatness to 120MHz n 0.01%/0.06˚ differential gain/ phase error n 335MHz -3dB bandwidth at G = 2 n 550MHz -3dB bandwidth at G = 1 n 1,500V/μs slew rate n 52mA output current (sufficient for driving two video loads) n 5.2mA supply current n Fully specified at ±5V supplies n

CLC2601 General Description

The Comlinear CLC2601 (dual), CLC3601 (triple), and CLC4601 (quad) are high-performance, current feedback amplifiers. These amplifiers provide 550MHz unity gain bandwidth, ±0.1dB gain flatness to 120MHz, and 1,500V/μs slew rate, exceeding the requirements of high-definition television (HDTV) and oth.

CLC2601 Datasheet (2.10 MB)

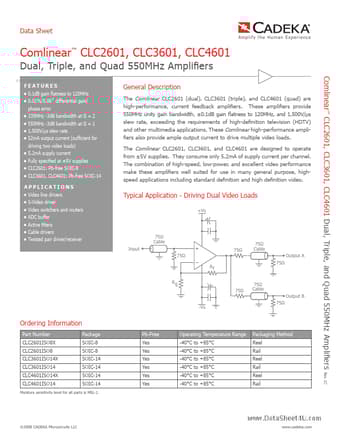

CLC2601 Datasheet Preview — Preview of CLC2601 PDF

Datasheet Details

Part number:

CLC2601

Manufacturer:

Cadeka

File Size:

2.10 MB

Description:

(clcx601) 550mhz amplifiers.
Data Sheet A m p l i fy t h e H u m a n E x p e r i e n c e Comlinear™ CLC2601, CLC3601, CLC4601 www.datasheet4u.com Dual, Triple, and Quad 550MHz .
