CLC2605

1.5GHz Amplifiers

CLC2605 Features

* n 0.1dB gain flatness to 120MHz n 0.01%/0.01˚ differential gain/phase n 1.2GHz -3dB bandwidth at G = 2 n 700MHz large signal bandwidth n 2,500V/μs slew rate n 3.7nV/√Hz input voltage noise n 120mA output current n Triple offers disable n Fully specified at 5V and ±5V supplies n CLC1605: Pb

CLC2605 General Description

The COMLINEAR CLC1605 (single), CLC2605 (dual), and CLC3605 (triple) are high-performance, current feedback amplifiers that provide 1.5GHz unity gain bandwidth, ±0.1dB gain flatness to 120MHz, and 2,500V/μs slew rate. This high perf.

CLC2605 Datasheet (1.12 MB)

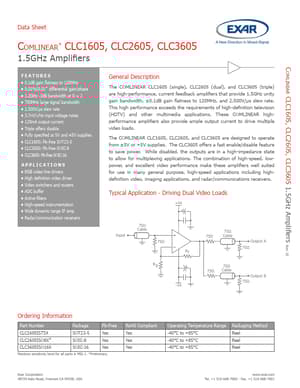

Preview of CLC2605 PDF

Datasheet Details

Part number:

CLC2605

Manufacturer:

Exar

File Size:

1.12 MB

Description:

1.5ghz amplifiers.
