XR-1003

General Purpose Low Pass Filter

XR-1003 Features

* Switched Capacitor Circuit Techniques Single 5 Volt Operation Low External Parts Count No Precision Components Necessary Low Power Operation 50:1/100:1 Clock to Cutoff Frequency Options 8-Pin/14-Pin Packag

XR-1003 General Description

The XR-1000 is a general purpose 4th order low pass filter utilizing switched capacitor (SCF) circuit techniques. XR-1000 is available in several options providing Butterworth or Chebyshev filter responses. The Chebyshev option is also available with passband ripple specifications of 0.01, 0.1, or 1.

XR-1003 Datasheet (125.13 KB)

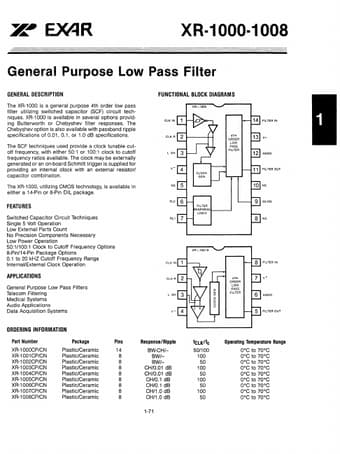

Preview of XR-1003 PDF

Datasheet Details

Part number:

XR-1003

Manufacturer:

Exar

File Size:

125.13 KB

Description:

General purpose low pass filter.
