XR-2013, XR-2011 High-Current Darlington Transistor Arrays

XR-2013 Description

XR-2011/12/13/14 High *Voltage, High *Current Darlington Transistor Arrays GENERAL .
The XR-2011/2012/2013/2014 are high-voltage, highcurrent Darlington transistor arrays consisting of seven silicon NPN Darlington pairs on a common mon.

XR-2013 Applications

* Rela

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: XR-2013, XR-2011. Please refer to the document for exact specifications by model.

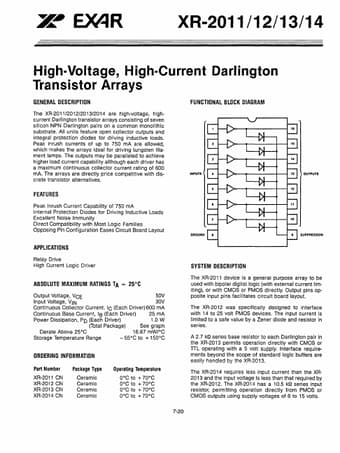

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XR-2013, XR-2011
Manufacturer
Exar
File Size
145.60 KB
Datasheet
XR-2011-Exar.pdf
Description
High-Current Darlington Transistor Arrays
Note
This datasheet PDF includes multiple part numbers: XR-2013, XR-2011.
Please refer to the document for exact specifications by model.
