Datasheet Specifications
- Part number
- LL60
- Manufacturer
- Excel Semiconductor
- File Size
- 227.05 KB
- Datasheet
- LL60-ExcelSemiconductor.pdf
- Description
- Schottky Barrier Diode
Description

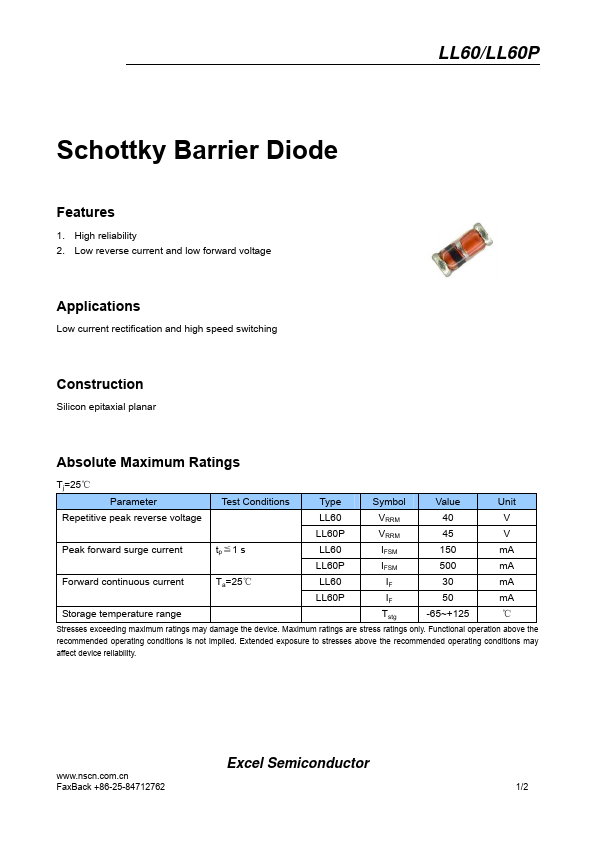

LL60/LL60P Schottky Barrier Diode .
Applications
* Low current rectification and high speed switching Construction Silicon epitaxial planar Absolute Maximum Ratings Tj=25℃ Parameter Test Conditions Type Symbol Value Unit Repetitive peak reverse voltage LL60 VRRM 40 V LL60P VRRM 45 V Peak forward surge current tp≦1 s LL60 IFSMLL60 Distributors
