EIA1114-2 - 11.0-14.0 GHz 2-Watt Internally Matched Power FET

Excelics Semiconductor

📥 Download Datasheet

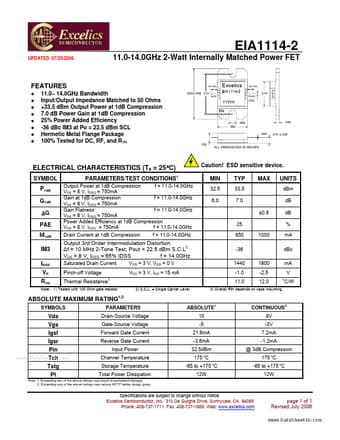

EIA1114-2 Datasheet Preview — Preview of EIA1114-2 PDF

Datasheet Details

Part number	EIA1114-2
Manufacturer	Excelics Semiconductor
File Size	103.18 KB
Description	11.0-14.0 GHz 2-Watt Internally Matched Power FET
Datasheet	EIA1114-2_ExcelicsSemiconductor.pdf

EIA1114-2 Product details

Features

11.0.
14.0GHz Bandwidth Input/Output Impedance Matched to 50 Ohms +33.5 dBm Output Power at 1dB Compression 7.0 dB Power Gain at 1dB Compression 25% Power Added Efficiency -36 dBc IM3 at Po = 22.5 dBm SCL Hermetic Metal Flange Package 100% Tested for DC, RF, and RTH .060 MIN. Excelics EIA1114-2 YYWW SN .094 .382 .060 MIN. .650±.008 .512 GATE .319 DRAIN .022 .045 .004 .070 ±.008 .129 ALL.
