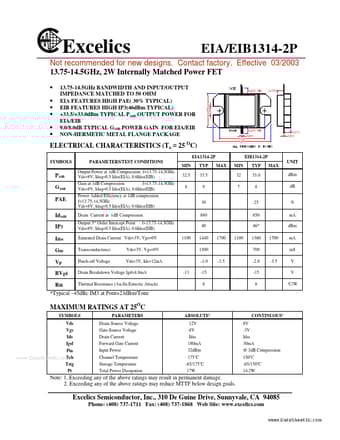

EIA1314-2P Datasheet, Fet, Excelics Semiconductor

EIA1314-2P Features

• Fet HIGH PAE( 30% TYPICAL) EIB FEATURES HIGH IP3(46dBm TYPICAL) +33.5/+33.0dBm TYPICAL P1dB OUTPUT POWER FOR EIA/EIB 9.0/8.0dB TYPICAL G1dB POWER GAIN FOR EIA/EIB NON-HERMETIC METAL FLANGE

PDF File Details

Part number:

EIA1314-2P

Manufacturer:

Excelics Semiconductor

File Size:

49.26kb

Download:

📄 Datasheet

Description:

13.75-14.5 ghz 2-w internally matched power fet.
