EIA1314-4P, 13.75-14.5 GHz 4W Internally Matched Power FET

Excelics * * * * * * 13.75-14.5GHz BANDWIDTH AND INPUT/OUTPUT IMPEDANCE MATCHED TO 50 OHM EIA .

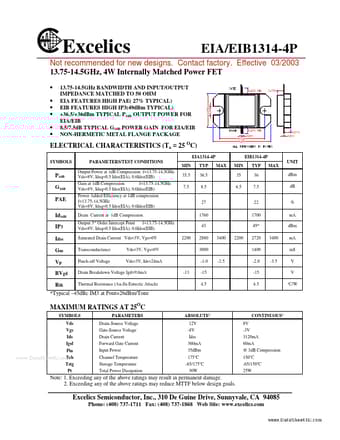

datasheet Preview Page 1 from Datasheet4u.com

EIA1314-4P_ExcelicsSemiconductor.pdf

EIA1314-4P Datasheet Preview — Preview of EIA1314-4P PDF

Datasheet Details

Part number:

EIA1314-4P

Manufacturer:

Excelics Semiconductor

File Size:

49.31 KB

Description:

13.75-14.5 GHz 4W Internally Matched Power FET

Features

* HIGH PAE( 27% TYPICAL) EIB FEATURES HIGH IP3(49dBm TYPICAL) +36.5/+36dBm TYPICAL P1dB OUTPUT POWER FOR EIA/EIB 8.5/7.5dB TYPICAL G1dB POWER GAIN FOR EIA/EIB NON-HERMETIC METAL FLANGE PACKAGE EIA/EIB1314-4P Not recommended for new designs. Contact factory. Effective 03/2003 13.75-14.5GHz, 4W Intern
