Part number:
EIB1819-1P
Manufacturer:
Excelics Semiconductor
File Size:
49.09 KB
Description:
18.7-19.7ghz 1w internally matched power fet.
EIB1819-1P_ExcelicsSemiconductor.pdf
Datasheet Details
EIB1819-1P Features

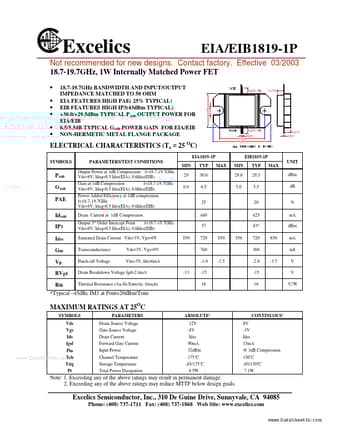

* HIGH PAE( 25% TYPICAL) EIB FEATURES HIGH IP3(43dBm TYPICAL) +30.0/+29.5dBm TYPICAL P1dB OUTPUT POWER FOR EIA/EIB 6.5/5.5dB TYPICAL G1dB POWER GAIN FOR EIA/EIB NON-HERMETIC METAL FLANGE PACKAGE EIA/EIB1819-1P Not recommended for new designs. Contact factory. Effective 03/2003 18.7-19.7GHz, 1W Inter
EIB1819-1P_ExcelicsSemiconductor.pdf
Datasheet Details
EIB1819-1P
Excelics Semiconductor
49.09 KB
18.7-19.7ghz 1w internally matched power fet.
