* 9.50
* 10.50GHz Bandwidth Input/Output Impedance Matched to 50 Ohms +40.5 dBm Output Power at 1dB Compression 7.0 dB Power Gain at 1dB Compression 30% Power Added Efficiency -46 dBc IM3 at PO = 28.5 dBm SCL 100% Tested for D
EIC0910-12 Datasheet (116.48 KB)
EIC0910-12
Excelics Semiconductor
116.48 KB
9.50-10.50 ghz 12-watt internally matched power fet.
www.DataSheet4U.com

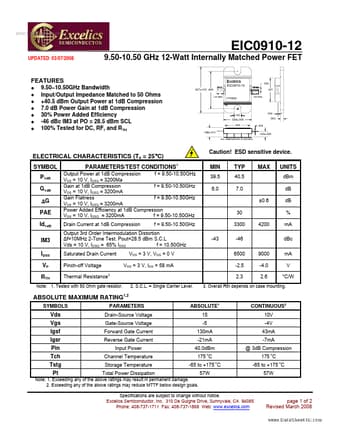

EIC0910-12
UPDATED 03/07/2008
9.50-10.50 GHz 12-Watt Internally Matched Power FET
Excelics
EIC0910-12
.827±.010 .669
.120 MIN .1.
