EIC0910-8 Datasheet - Excelics Semiconductor

EIC0910-8 Internally Matched Power FET

EIC0910-8 Features

* 9.50

* 10.50GHz Bandwidth Input/Output Impedance Matched to 50 Ohms +39.5 dBm Output Power at 1dB Compression 7.5 dB Power Gain at 1dB Compression 30% Power Added Efficiency -43 dBc IM3 at PO = 28.5 dBm SCL 100% Tested for D

EIC0910-8_ExcelicsSemiconductor.pdf

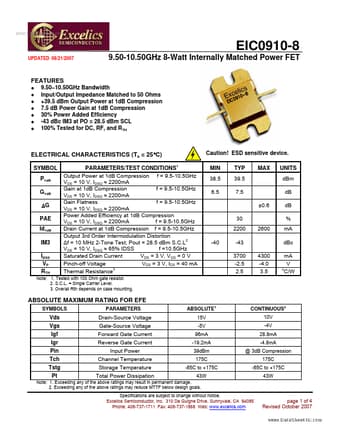

Preview of EIC0910-8 PDF
EIC0910-8 Datasheet Preview Page 2 EIC0910-8 Datasheet Preview Page 3

Datasheet Details

Part number:

EIC0910-8

Manufacturer:

Excelics Semiconductor

File Size:

216.33 KB

Description:

Internally matched power fet.
