EIC1010-25 Datasheet - Excelics Semiconductor

EIC1010-25 9.50-10.50 GHz 25-Watt Internally Matched Power FET

EIC1010-25 Features

* 10.0

* 10.25 GHz Bandwidth Input/Output Impedance Matched to 50 Ohms +44 dBm Output Power at 1dB Compression 7 dB Power Gain at 1dB Compression 33% Power Added Efficiency Hermetic Metal Flange Package 100% Tested for DC, R

EIC1010-25_ExcelicsSemiconductor.pdf

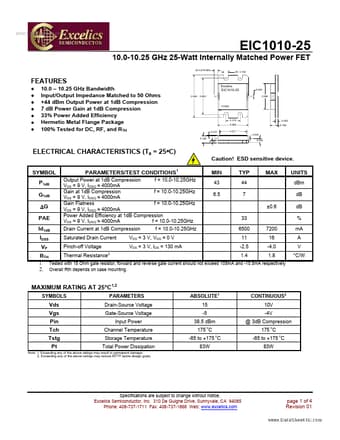

EIC1010-25 Datasheet Preview — Preview of EIC1010-25 PDF

Datasheet Details

Part number:

EIC1010-25

Manufacturer:

Excelics Semiconductor

File Size:

168.64 KB

Description:

9.50-10.50 ghz 25-watt internally matched power fet.
