C30902SH-TC Datasheet - Excelitas

C30902SH-TC High-speed solid state detectors

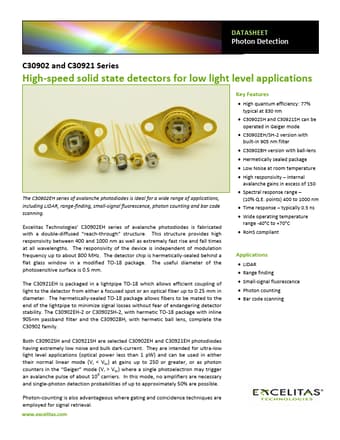

DATASHEET Photon Detection C30902 and C30921 Series High-speed solid state detectors for low light level applications The C30902EH series of avalanche photodiodes is ideal for a wide range of applications, including LIDAR, range-finding, small-signal fluorescence, photon counting and bar code scanning. Excelitas Technologies’ C30902EH series of avalanche photodiodes is fabricated with a double-diffused “reach-through” structure. This structure provides high responsivity between 400 and 1000 nm.

C30902SH-TC Features

* High quantum efficiency: 77% typical at 830 nm

* C30902SH and C30921SH can be operated in Geiger mode

* C30902EH/SH-2 version with built-in 905 nm filter

* C30902BH version with ball-lens

* Hermetically sealed package

* Low Noise at room temperature

* High responsivity

C30902SH-TC Datasheet (847.86 KB)
