PYD1588-7656 IR Pyroelectric Detectors

low power DigiPyroTM Infrared Sensing Solutions PYD 1588 / 7656 Low Power Dual Element Pyro The PYD 1588 is a serial opposed format, two elements detector based on pyroceramic. The signal is converted to a digital value using Sigma-Delta and DSP techniques. A conﬁgurable motion detection unit is implemented. Once motion was detected, an interrupt will be send to the host system. Putting the host system to sleep an overall ultra low power consumption will be achieved. All data is accessible from .

PYD1588-7656 Features

* Integrated digitization

* Motion detection unit with Interrupt function

* Low-power consumption of only 3 µA at 1.8 V.

* High responsivity ceramic pyroelectric elements

* Dual detector with 2 × 1 mm2 elements

* 110◦ ﬁeld-of-view

* TO-5 metal

PYD1588-7656 Datasheet (1.12 MB)

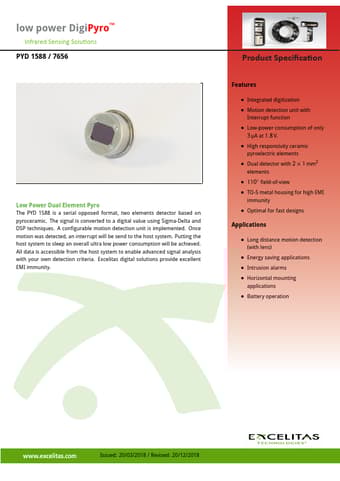

PYD1588-7656 Datasheet Preview — Preview of PYD1588-7656 PDF

Datasheet Details

Part number:

PYD1588-7656

Manufacturer:

Excelitas

File Size:

1.12 MB

Description:

Ir pyroelectric detectors.
