PYD1598-7655 IR Pyroelectric Detectors

low power DigiPyroTM Infrared Sensing Solutions PYD 1598 / 7655 Low Power Dual Element Large Field-of-View Pyro The PYD 1598 is a serial opposed format, two elements detector based on pyroceramic. The signal is converted to a digital value using Sigma-Delta and DSP techniques. A conﬁgurable motion detection unit is implemented. Once motion was detected, an interrupt will be send to the host system. Putting the host system to sleep an overall ultra low power consumption will be achieved. All data.

PYD1598-7655 Features

* Integrated digitization

* Motion detection unit with Interrupt function

* Low-power consumption of only 3 µA at 1.8 V.

* High responsivity ceramic pyroelectric elements

* Dual detector with 2 × 1 mm2 elements

* 130◦ ﬁeld-of-view

* TO-5 metal

PYD1598-7655 Datasheet (1.68 MB)

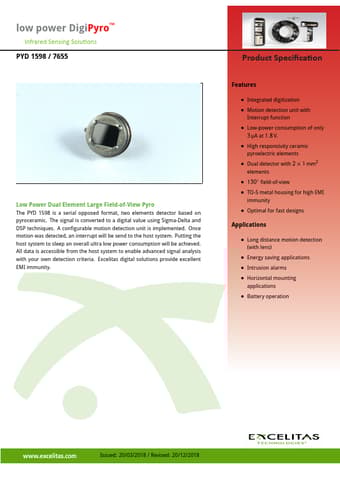

PYD1598-7655 Datasheet Preview — Preview of PYD1598-7655 PDF

Datasheet Details

Part number:

PYD1598-7655

Manufacturer:

Excelitas

File Size:

1.68 MB

Description:

Ir pyroelectric detectors.
