1N5408GP, 1N5400GP 3 Amp. Glass Passivated Junction Rectifier

1N5408GP Description

1N5400GP 1N5408GP 3.0 Amp.Glass Passivated Junction Rectifier DO-201AD (DO-27) Voltage 50V to 1000 V Current 3.0 A at 105º C R .

1N5408GP Features

* • Glass passivated chip junction • Hyperectifier structure for high reliability • Cavity-free glass-passivated junction • Low forward voltage drop • Low leakage current, typical IR less than 0.1 µA • High forward surge capability • Solder dip 260ºC, 10s • Component in accordance to RoHS 2011/65/EU a

1N5408GP Applications

* Used in general purpose rectification of power supplies, inverters, converters and freewheeling diodes application Maximun Ratings and Electrical Characteristics at 25°C VRRM IF(AV) IFRM IFSM Tj T

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N5408GP, 1N5400GP. Please refer to the document for exact specifications by model.

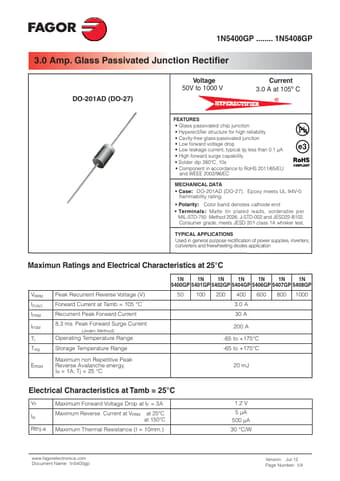

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1N5408GP, 1N5400GP
Manufacturer
FAGOR
File Size
291.01 KB
Datasheet
1N5400GP-FAGOR.pdf
Description
3 Amp. Glass Passivated Junction Rectifier
Note
This datasheet PDF includes multiple part numbers: 1N5408GP, 1N5400GP.
Please refer to the document for exact specifications by model.
