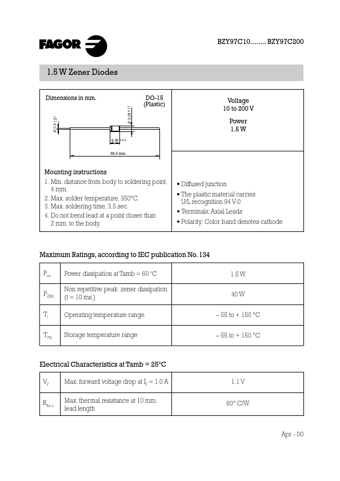

BZY97C10 BZY97C200 1.5 W Zener Diodes Dimensions in mm.
DO-15 (Plastic) Voltage 10 to 200 V Power 1.5 W 6.35 ± 0.2 58.5 min.
Mounting instructions 1.
Min.
distance from body to soldering point, 4 mm.
2.
Max.
solder temperature, 350°C.
3.
Max.
soldering time, 3.5 sec.
4.
Do not bend lead at a point closer than 2 mm.
to the body.
Diffused junction The plastic material carries U/L recognition 94 V-0 Terminals: Axial Leads Polarity: Color band denotes c
