BZY97C6x, BZY97C12 Datasheet - Fagor Electronic Components

BZY97C6x (BZY97C10 - BZY97C200) Zener Diodes

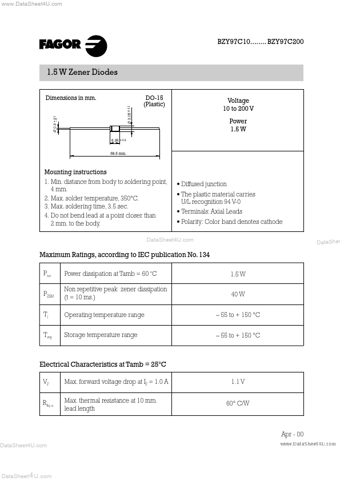

www.DataSheet4U.com BZY97C10 BZY97C200 1.5 W Zener Diodes Dimensions in mm. DO-15 (Plastic) Voltage 10 to 200 V Power 1.5 W 6.35 ± 0.2 58.5 min. Mounting instructions 1. Min. distance from body to soldering point, 4 mm. 2. Max. solder temperature, 350°C. 3. Max. soldering time, 3.5 sec. 4. Do not bend lead at a point closer than 2 mm. to the body. Diffused junction The plastic material carries U/L recognition 94 V-0 Terminals: Axial Leads Polarity:.

BZY97C12_FagorElectronicComponents.pdf

This datasheet PDF includes multiple part numbers: BZY97C6x, BZY97C12. Please refer to the document for exact specifications by model.
BZY97C6x Datasheet Preview Page 2 BZY97C6x Datasheet Preview Page 3

Datasheet Details

Part number:

BZY97C6x, BZY97C12

Manufacturer:

Fagor Electronic Components

File Size:

246.63 KB

Description:

(bzy97c10 - bzy97c200) zener diodes.

Note:

This datasheet PDF includes multiple part numbers: BZY97C6x, BZY97C12.
Please refer to the document for exact specifications by model.
