EGP20A Datasheet - FAGOR

EGP20A 2 Amp. Glass Passivated Avalanche Ultrafast Recovery Rectifier

EGP20A EGP20J 2 Amp. Glass Passivated Avalanche Ultrafast Recovery Rectifier Dimensions in mm. DO-15 (Plastic) Voltage 50 to 600 V Current 2 A at 55 °C ø0.8±0.05 ø3.05±0.1 6.35±0.2 58.5±0.5 Mounting instructions 1. Min. distance from body to soldering point, 4 mm. 2. Max. solder temperature, 350 °C. 3. Max. soldering time, 3.5 sec. 4. Do not bend lead at a point closer than 2 mm. to the body. R Glass passivated junction High current capability The plastic m.

EGP20A-FAGOR.pdf

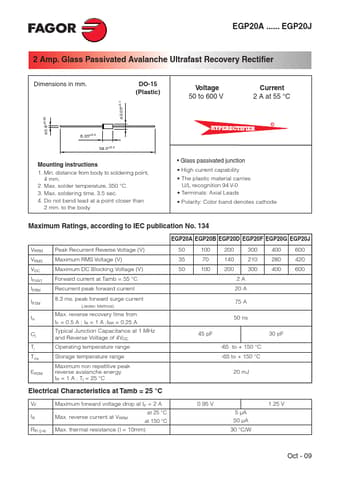

Preview of EGP20A PDF
EGP20A Datasheet Preview Page 2

Datasheet Details

Part number:

EGP20A

Manufacturer:

FAGOR

File Size:

452.96 KB

Description:

2 amp. glass passivated avalanche ultrafast recovery rectifier.
