EGP20J, EGP20A Datasheet - FAGOR

EGP20J - 2 Amp. Glass Passivated Avalanche Ultrafast Recovery Rectifier

EGP20A EGP20J 2 Amp.

Glass Passivated Avalanche Ultrafast Recovery Rectifier Dimensions in mm.

DO-15 (Plastic) Voltage 50 to 600 V Current 2 A at 55 °C ø0.8±0.05 ø3.05±0.1 6.35±0.2 58.5±0.5 Mounting instructions 1.

Min.

distance from body to soldering point, 4 mm.

2.

Max.

solder temperature, 350 °C.

3.

Max.

soldering time, 3.5 sec.

4.

Do not bend lead at a point closer than 2 mm.

to the body.

R Glass passivated junction High current capability The plastic m

EGP20A-FAGOR.pdf

This datasheet PDF includes multiple part numbers: EGP20J, EGP20A. Please refer to the document for exact specifications by model.

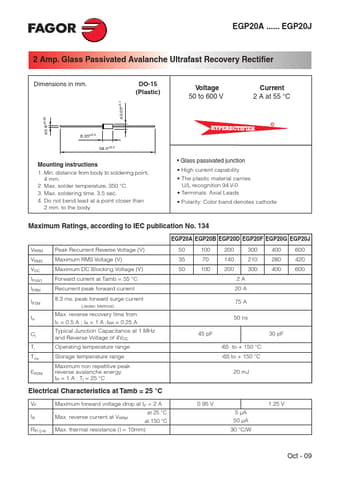

EGP20J Datasheet Preview Page 2

Datasheet Details

Part number:

EGP20J, EGP20A

Manufacturer:

FAGOR

File Size:

452.96 KB

Description:

2 amp. glass passivated avalanche ultrafast recovery rectifier.

Note:

This datasheet PDF includes multiple part numbers: EGP20J, EGP20A.
Please refer to the document for exact specifications by model.
