EGP50D, EGP50A 5.0 Amp. Glass Passivated UltraFast Recovery Rectifier

FAGOR

Description

EGP50A EGP50M 5.0 Amp.Glass Passivated Ultrafast Recovery Rectifier DO-201AD (DO-27) Voltage 50V to 1000V Current 5 A at 55 °C R .

📥 Download Datasheet

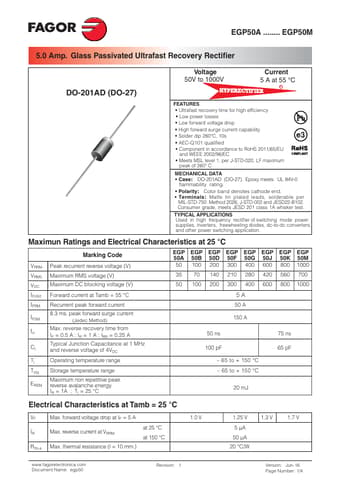

EGP50D Datasheet Preview — This datasheet PDF includes multiple part numbers: EGP50D, EGP50A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: EGP50D, EGP50A
Manufacturer: FAGOR
File Size: 280.12 KB
Datasheet: EGP50A-FAGOR.pdf
Description: 5.0 Amp. Glass Passivated UltraFast Recovery Rectifier
Note: This datasheet PDF includes multiple part numbers: EGP50D, EGP50A.
Please refer to the document for exact specifications by model.

Features

* Ultrafast recovery time for high efficiency Low power losses Low forward voltage drop High forward surge current capability Solder dip 260ºC, 10s AEC-Q101 qualified Component in accordance to RoHS 2011/65/EU and WEEE 2002/96/EC Meets MSL level 1, per J-STD-020, LF maximum peak of 260

Applications

* Used in high frequency rectifier of switching mode power supplies, inverters, freewheeling diodes, dc-to-dc converters, and other power switching application. Maximun Ratings and Electrical Characteristics at 2
