FL817D

4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER

FL817D Features

* Current transfer ratio (CTR:MIN.50% at IF =5mA ,VCE =5V) High isolation voltage between input and output (Viso=5000 V rms )

* Compact dual-in-line package FL817

* :1-channel type

* Pb free Options available:

* Leads with 0.4”(10.16mm) spacing (M Type)

* L

FL817D General Description

& Condition (Acc.) Failure Sample Criteria Reference Standard Endurance Test Operation Life
* Ta = 25 ± 3°C IR: If = 50 mA Pt: Pc = 130 mW ( Vf=1.4v) , 1000 hrs High Temperature / High Ta = 85 ± 3°C , Humi. = 85 % rh Humidity Reverse Bias Pt: 80%
* Vce (max rating) , 1000 (H3TRB) h.

FL817D Datasheet (4.35 MB)

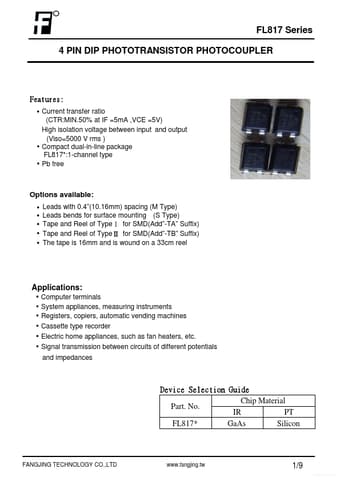

Preview of FL817D PDF

Datasheet Details

Part number:

FL817D

Manufacturer:

FANGJING

File Size:

4.35 MB

Description:

4 pin dip phototransistor photocoupler.
