FL816

4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER

FL816 Features

* z Current transfer ratio (CTR:50%-600% at IF=5mA,VCE=5V) z High isolation voltage between inputc and output (Viso=5000V rms) z Creepage distance>7.62mm z Pb free and ROHS compliant z UL/CUL Approved (File No. E340048) Description The FL817 series of devices each consist of an infrared Emitting diode

FL816 General Description

The FL817 series of devices each consist of an infrared Emitting diodes, optically coupled to a phototransistor detector. They are packaged in a 4-pin DIP package and available in Wide-lead spacing and SMD option. FL816 Series DIP4L APPLICATIONS z Programmable controllers z System appliances,measu.

FL816 Datasheet (427.11 KB)

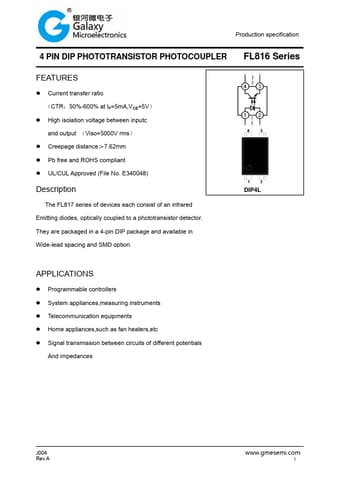

Preview of FL816 PDF

Datasheet Details

Part number:

FL816

Manufacturer:

GME

File Size:

427.11 KB

Description:

4 pin dip phototransistor photocoupler.
