1SMA5933B

Surface Mount Zener Diode

1SMA5933B Features

* ¬ For surface mounted applications ¬ 1.5 W power dissipation ¬ Ideally suited for automated assembly processes Mechanical Data ¬ Case: Molded plastic SMA/DO-214AC ¬ Epoxy: UL 94V-0 rate flame retardant ¬ Terminals: Solderable per MIL-STD-750 method 2026 ¬ Polarity: cathode band ¬ Mounting position:

1SMA5933B General Description

1.5 WATTS Surface Mount Zener Diode Mechanical Dimensions .055(1.40) .062(1.60) .098(2.50) .114(2.90) .078(2.00) .096(2.44) .030(0.76) .060(1.52) .157(4.00) .181(4.60) .006(.152) .012(.305) .002(.051) .008(.203) .188(4.80) .208(5.28) SMA/DO-214AC Dimensions in inches and (millimeters) Fea.

1SMA5933B Datasheet (435.67 KB)

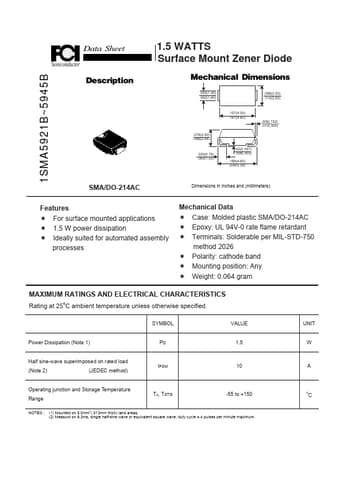

Preview of 1SMA5933B PDF

Datasheet Details

Part number:

1SMA5933B

Manufacturer:

FCI

File Size:

435.67 KB

Description:

Surface mount zener diode.
