UC3842A-BW

Current Mode PWM Controller

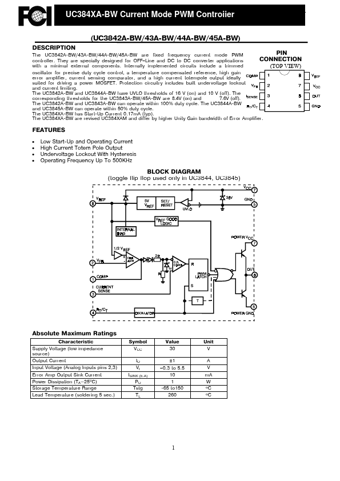

UC3842A-BW Datasheet (917.76 KB)

Preview of UC3842A-BW PDF Datasheet

Datasheet Details

Part number:

UC3842A-BW

Manufacturer:

FCI

File Size:

917.76 KB

Description:

Current mode pwm controller

UC3842A-BW Features

* Low Start-Up and Operating Current

* High Current Totem Pole Output

* Undervoltage Lockout With Hysteresis

* Operating Frequency Up To 500KHz BLOCK DIAGRAM (toggle flip flop used only in UC3844, UC3845) Absolute Maximum Ratings Characteristic Supply Voltage (low

UC3842A-BW General Description

The UC3842A-BW/43A-BW/44A-BW/45A-BW are fixed frequency current mode PWM controller. They are specially designed for OFF

*Line and DC to DC converter applications with a minimal external components. Internally implemented circuits include a trimmed PIN CONNECTION (TOP VIEW) oscillator for p.
