UC3842A

CURRENT MODE PWM CONTROLLER

UC3842A Features

* Operation output switching frequency up to 500 kHz

* Automatic feed forward compensation

* Latching PWM for cycle-by-cycle current limiting

* High current totem pole output

* Internally trimmed reference with under voltage lockout

* UVLO with hysteresis

* Low startup an

UC3842A General Description

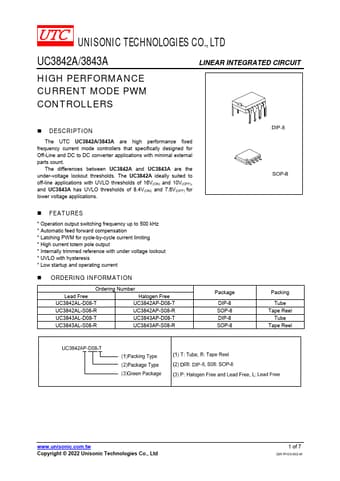

The UTC UC3842A/3843A are high performance fixed frequency current mode controllers that specifically designed for Off-Line and DC to DC converter applications with minimal external parts count. The differences between UC3842A and UC3843A are the under-voltage lockout thresholds. The UC3842A ideally.

UC3842A Datasheet (458.23 KB)

Preview of UC3842A PDF

Datasheet Details

Part number:

UC3842A

Manufacturer:

UTC

File Size:

458.23 KB

Description:

Current mode pwm controller.
