UC3844

HIGH PERFORMANCE CURRENT MODE PWM CONTROLLERS

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part Texas Instruments UC3844DTR IC REG CTRLR PWM CM 14-SOIC DigiKey 2500 2500 units
$0.49

UC3844 Datasheet (428.57 KB)

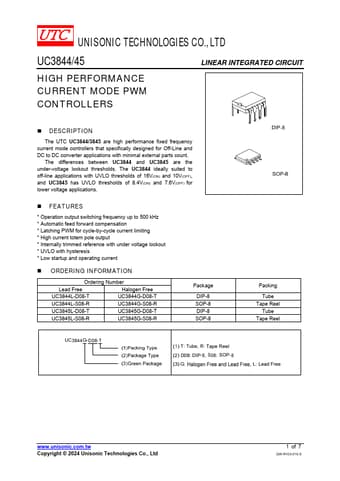

Preview of UC3844 PDF

Datasheet Details

Part number:

UC3844

Manufacturer:

UTC

File Size:

428.57 KB

Description:

High performance current mode pwm controllers.

UC3844 Features

* Operation output switching frequency up to 500 kHz

* Automatic feed forward compensation

* Latching PWM for cycle-by-cycle current limiting

* High current totem pole output

* Internally trimmed reference with under voltage lockout

* UVLO with hysteresis

* Low startup an

UC3844 General Description

The UTC UC3844/3845 are high performance fixed frequency current mode controllers that specifically designed for Off-Line and DC to DC converter applications with minimal external parts count. The differences between UC3844 and UC3845 are the under-voltage lockout thresholds. The UC3844 ideally suit.
