CR14250SE Datasheet - FDK

CR14250SE Battery Cell

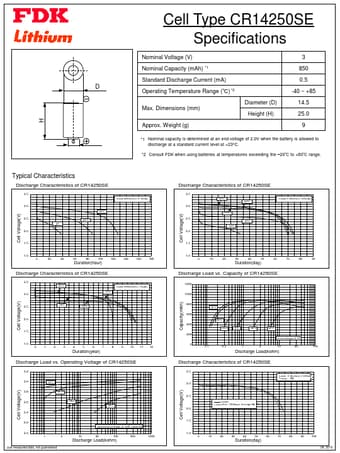

D d Cell Type CR14250SE Specifications Nominal Voltage (V) Nominal Capacity (mAh) 1 Standard Discharge Current (mA) Operating Temperature Range (℃) 2 Max. Dimensions (mm) Approx. Weight (g) Diameter (D) Height (H) 3 850 0.5 -40 ~ +85 14.5 25.0 9 1 Nominal capacity is determined at an end voltage of 2.0V when the battery is allowed to discharge at a standard current level at +23oC. 2 Consult FDK when using batteries at temperatures exceeding the 20℃ to +60℃ range.

CR14250SE Datasheet (74.54 KB)

CR14250SE Datasheet Preview — Preview of CR14250SE PDF

Datasheet Details

Part number:

CR14250SE

Manufacturer:

FDK

File Size:

74.54 KB

Description:

Battery cell.
