FM205, FM202 2.0A Surface Mount Schottky Rectifier

FM205 Description

F.E.C.Semiconductor II.Schottky Rectifier 2.0A Surface Mount Schottky Rectifier FM202~FM210 (Package: SOD-123) .

FM205 Features

* Silicon epitaxial planar chip, metal-silicon junction Batch process design, excellent power dissipation offers better reverse leakage current and thermal resistance Ultra high speed switching Low power loss, high efficiency Low forward voltage drop, high current capability Guardring for overvoltage

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FM205, FM202. Please refer to the document for exact specifications by model.

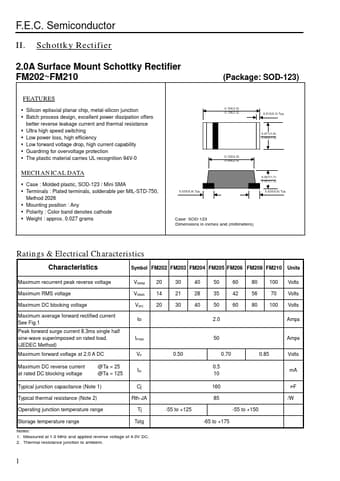

datasheet Preview Page 2

Datasheet Details

Part number
FM205, FM202
Manufacturer
FEC Semiconductor
File Size
69.24 KB
Datasheet
FM202-FECSemiconductor.pdf
Description
2.0A Surface Mount Schottky Rectifier
Note
This datasheet PDF includes multiple part numbers: FM205, FM202.
Please refer to the document for exact specifications by model.
