SM063 Datasheet - FENFA ELECTRONICS

SM063 SMD Power Inductors

www.DataSheet4U.net SMD Power Inductors SM063 Series SM063 Series ,Ultra low cost,Shielded construction,High current rating up to DC 65Amp,High frequency range up to 5MHz,Very low DC resistance,Low Noise,RoHS compliant. Mainly used by PDA/Notebook/Desktop/Server applications, DC/DC converter. Part Number Inductance (uH) ±20% 0.10 0.15 0.20 0.22 0.33 0.36 0.47 0.56 0.68 0.82 1.00 1.50 2.20 2.50 3.30 4.70 5.60 6.80 7.50 8.20 10.00 DCR(mΩ) Typical MAX 1.70 2.50 3.00 2.80 3.90 3.90 4.20 5.00 5.5.

SM063_FENFAELECTRONICS.pdf

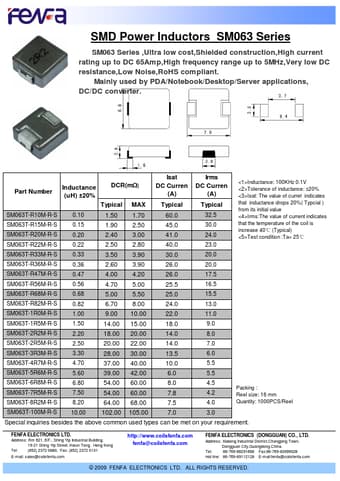

Preview of SM063 PDF

Datasheet Details

Part number:

SM063

Manufacturer:

FENFA ELECTRONICS

File Size:

101.80 KB

Description:

Smd power inductors.
