SM06927-36H

2W Linear Power Amplifier

SM06927-36H Features

* while maintaining a minimal size. Features

* Mis-Match Protected Single Power Supply Over/Reverse Voltage Protection Thermal Protection with Auto Reset Parameter Frequency Range Pout (P1dB) Third Order Intercept Point Linear Gain Gain Flatness over Full Band In

SM06927-36H General Description

Input Connector (SMA Female) Output Connector (SMA Female) Ground Turret DC Input Voltage TTL Logic On/Off Values +4 dBm typ + 36 dBm @ P1dB

*+ 12 Volts @ 1.8 Amperes 0 Volts = Off, +5 Volts = On Specifications subject to change without notice. 1007 Whitehead Road Ext., Trenton, NJ 08638 .

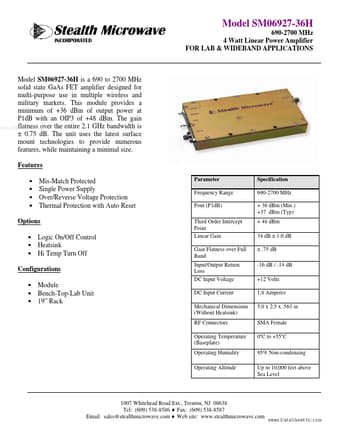

SM06927-36H Datasheet (115.17 KB)

Preview of SM06927-36H PDF

Datasheet Details

Part number:

SM06927-36H

Manufacturer:

Stealth

File Size:

115.17 KB

Description:

2w linear power amplifier.
Model SM06927-36H 690-2700 MHz 4 Watt Linear Power Amplifier FOR LAB & WIDEBAND APPLICATIONS Model SM06927-36H is a 690 to 2700 MHz solid state GaAs .
