A1309 Datasheet - FGX

A1309 PNP Silicon

APPLICATION：GENERAL PURPOSE APPLICATION. MAXIMUM RATINGS（Ta＝25℃） PARAMETER SYMBOL RATING UNIT Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector Power Dissipation Junction Temperature Storage Temperature Range VCBO VCEO VEBO IC PC TJ Tstg -30 V -25 V -5 V -100 mA 300 mW 150 ℃ ﹣55~150 ℃ A1309 PNP silicon ELECTRICAL CHARACTERISTICS（Ta=25℃） PARAMETER SYMBOL MIN. TYP. MAX. UNIT TEST CONDITION .

A1309 Datasheet (128.90 KB)

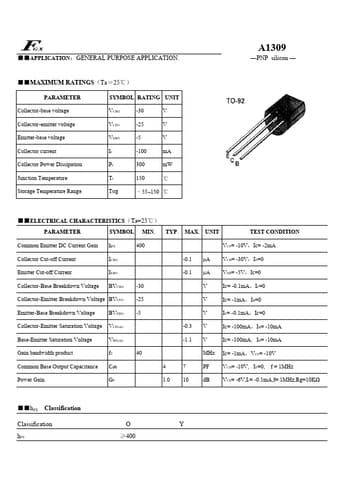

A1309 Datasheet Preview — Preview of A1309 PDF

Datasheet Details

Part number:

A1309

Manufacturer:

FGX

File Size:

128.90 KB

Description:

Pnp silicon.
