A1300 Datasheet - Toshiba Semiconductor

A1300 2SA1300

TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT process) 2SA1300 Strobe Flash Applications Medium Power Amplifier Applications 2SA1300 Unit: mm High DC current gain and excellent hFE linearity : hFE (1) = 140~600 (VCE = 1 V, IC = 0.5 A) : hFE (2) = 60 (min), 120 (typ.) (VCE = 1 V, IC = 4 A) Low saturation voltage: VCE (sat) = 0.5 V (max) (IC = 2 A, IB = 50 mA) Maximum Ratings (Ta = 25°C) Characteristics Symbol Ra.

A1300 Datasheet (90.71 KB)

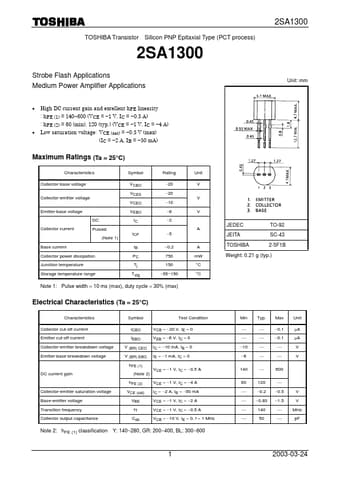

Preview of A1300 PDF
A1300 Datasheet Preview Page 2 A1300 Datasheet Preview Page 3

Datasheet Details

Part number:

A1300

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

90.71 KB

Description:

2sa1300.
