A1309 - Linear Hall-Effect Sensor

Product Overview

Allegro

📥 Download Datasheet

A1309 Linear Hall-Effect Sensor by Allegro - Datasheet Preview — Datasheet preview – A1309

Datasheet Details

Part number	A1309
Manufacturer	Allegro
File Size	1.30 MB
Description	Linear Hall-Effect Sensor
Datasheet	A1309 Datasheet
Note	This datasheet PDF includes multiple part numbers: A1309, A1308. Please refer to the document for exact specifications by model.

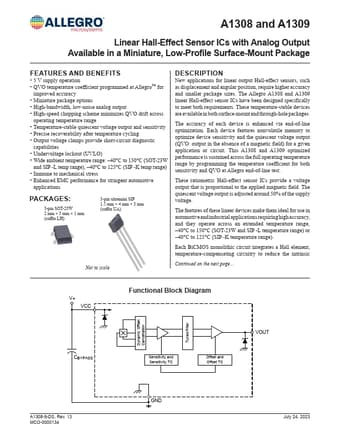

Additional preview pages of the A1309 datasheet.

Product details

Description

New applications for linear output Hall-effect sensors, such as displacement and angular position, require higher accuracy and smaller package sizes.

Features

5 V supply operation.
QVO temperature coefficient programmed at Allegro™ for improved accuracy.
Miniature package options.
High-bandwidth, low-noise analog output.
High-speed chopping scheme minimizes QVO drift across operating temperature range.
Temperature-stable quiescent voltage output and sensitivity.
Precise recoverability after temperature cycling.
Output voltage clamps provide short-circuit diagnostic capabilities.
