A1332

Precision Hall Effect Angle Sensor

A1332 Features

* 360° contactless high resolution angle position sensor

* CVH (Circular Vertical Hall) technology

* Digital I2C output

* Refresh Rate: 32 µs, 12-bit resolution

* Automotive temperature range -40 to 85C as well as -40 to 125C

* Two types of linearizati

A1332 General Description

The A1332 is a 360° contactless high resolution programmable magnetic angle position sensor IC. It is designed for digital systems using an I2C interface. This system-on-chip (SoC) architecture includes a front end based on Circular Vertical Hall (CVH) technology, programmable microprocessor based s.

A1332 Datasheet (1.01 MB)

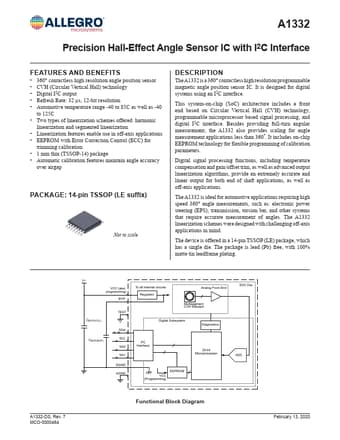

Preview of A1332 PDF

Datasheet Details

Part number:

A1332

Manufacturer:

Allegro

File Size:

1.01 MB

Description:

Precision hall effect angle sensor.
