A1335 - Precision Hall-Effect Angle Sensor

A1335 Description

A1335 Precision Hall-Effect Angle Sensor IC with I 2C, SPI, and SENT Interfaces .
TheA1335 is a 360° contactless high-resolution programmable magnetic angle position sensor IC.

A1335 Features

* 360° contactless high-resolution angle position sensor
* Circular vertical Hall (CVH) technology
* Available with either a single die or dual independent die housed within a single package
* Digital output format selectable among serial port interface (SPI), inter-i

A1335 Applications

* requiring redundancy
* Refresh rate: 32 µs, 12-bit resolution
* Programmable via Manchester encoding on the VCC line, reducing external wiring
* Automotive temperature range:
* 40°C to 150°C
* AEC-Q100 automotive qualified PACKAGES: Continued on the next page

📥 Download Datasheet

Preview of A1335 PDF

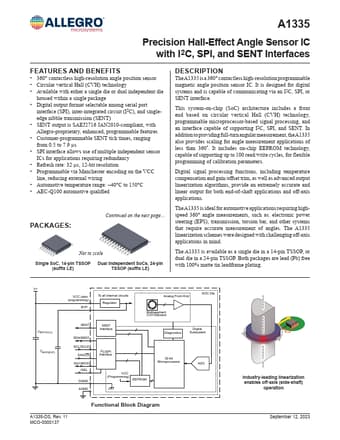

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A1335
Manufacturer
Allegro
File Size
2.80 MB
Datasheet
A1335-Allegro.pdf
Description
Precision Hall-Effect Angle Sensor
