A1330 - Programmable Angle Sensor

A1330 Description

A1330 Programmable Angle Sensor IC with Analog and PWM Output .
The A1330 is a 360° angle sensor IC that provides contactless high-resolution angular position information based on magnetic Circular Vertical Hall (C.

A1330 Features

* Contactless 0° to 360° angle sensor IC, for angular position, rotational speed, and direction measurement
* Single and dual die options available in same package

A1330 Applications

* Missing Magnet Error flag for notifying controller of low magnetic field level
* EEPROM programmable angle reference (0°) position and rotation direction (CW or CCW)

📥 Download Datasheet

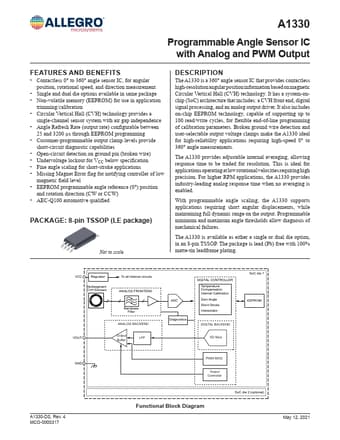

Preview of A1330 PDF
