A1320 Datasheet - Toshiba Semiconductor

A1320 2SA1320

2SA1320 TOSHIBA Transistor Silicon PNP Triple Diffused Type (PCT process) 2SA1320 High Voltage Switching Applications Color TV Chroma Output Applications High voltage: VCEO = 250 V Low Cre: 1.8 pF (max) Complementary to 2SC3333 Unit: mm Absolute Maximum Ratings (Ta = 25°C) Characteristics Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature.

A1320 Datasheet (269.65 KB)

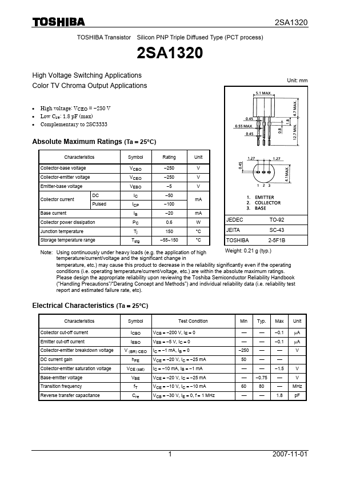

Preview of A1320 PDF
A1320 Datasheet Preview Page 2 A1320 Datasheet Preview Page 3

Datasheet Details

Part number:

A1320

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

269.65 KB

Description:

2sa1320.
