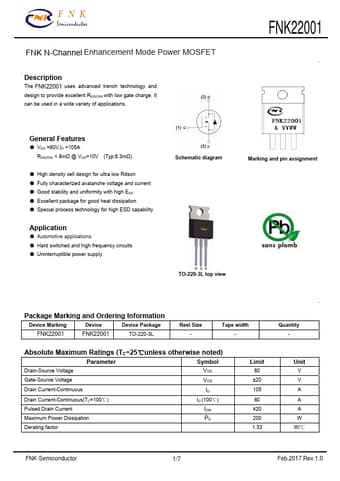

FNK22001 Datasheet, Mosfet, FNK

FNK22001 Features

• Mosfet
• VDS =80V,ID =105A RDS(ON) < 8mΩ @ VGS=10V (Typ:6.3mΩ)
• High density cell design for ultra low Rdson
• Fully characterized avalanche voltage and current

PDF File Details

Part number:

FNK22001

Manufacturer:

FNK

File Size:

1.07MB

Download:

📄 Datasheet

Description:

N-channel power mosfet. The FNK22001 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wide v

FNK22001 Application

• Applications FNK22001 General Features
• VDS =80V,ID =105A RDS(ON) < 8mΩ @ VGS=10V (Typ:6.3mΩ)
• High density cell design for u
