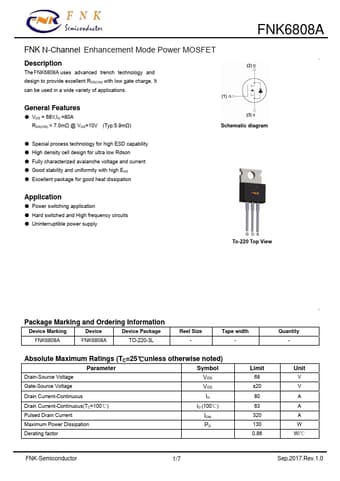

FNK6808A Datasheet, Mosfet, FNK

FNK6808A Features

• Mosfet
• VDS = 68V,ID =80A RDS(ON) < 7.0mΩ @ VGS=10V (Typ:5.9mΩ)
• Special process technology for high ESD capability
• High density cell design for ultra low Rdson <

PDF File Details

Part number:

FNK6808A

Manufacturer:

FNK

File Size:

1.18MB

Download:

📄 Datasheet

Description:

N-channel power mosfet. The FNK6808A uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wide v

FNK6808A Application

• Applications FNK6808A General Features
• VDS = 68V,ID =80A RDS(ON) < 7.0mΩ @ VGS=10V (Typ:5.9mΩ)
• Special process technology f
