FNK80H11 - N-Channel Power MOSFET

FNK

📥 Download Datasheet

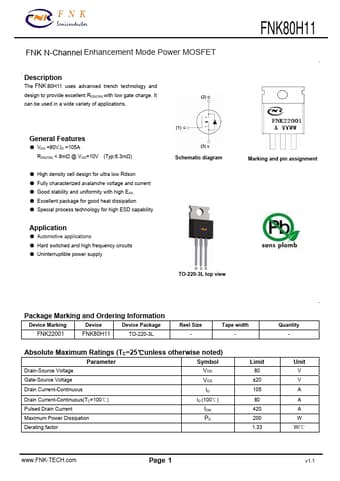

FNK80H11 Datasheet Preview — Preview of FNK80H11 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	FNK80H11
Manufacturer	FNK
File Size	779.57 KB
Description	N-Channel Power MOSFET
Datasheet	FNK80H11-FNK.pdf

FNK80H11 Product details

Description

The FNK 80H11 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

Features

VDS =80V,ID =105A RDS(ON) < 8mΩ @ VGS=10V (Typ:6.3mΩ).
High density cell design for ultra low Rdson.
Fully characterized avalanche voltage and current.
Good stability and uniformity with high EAS.
Excellent package for good heat dissipation.
Special process technology for high ESD capability.
