9014W - Silicon NPN transistor

General Description

SOT-323 NPN 。Silicon NPN transistor in a SOT-323 Plastic Package.

Key Features

  • PC ,hFE , 9015W(BR3CG9015W)。 High PC and hFE, excellent hFE linearity, complementary pair with 9015W(BR3CG9015W). /.

📥 Download Datasheet

Datasheet Details

Part number 9014W
Manufacturer FOSHAN BLUE ROCKET
File Size 649.99 KB
Description Silicon NPN transistor
Datasheet download datasheet 9014W Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
9014 NPN SILICON TRANSISTOR Wing Shing Computer Components
9014 NPN SILICON TRANSISTOR TIP
9014 Quad Exclusive OR Gate Fairchild
9014 Silicon NPN transistor BLUE ROCKET ELECTRONICS
9014 NPN SILICON TRANSISTOR UTC

Other Datasheets by FOSHAN BLUE ROCKET

Part Number Description
9014M SILICON NPN TRANSISTOR
9014MG Silicon NPN transistor
9014T Silicon NPN transistor
9011M Silicon NPN transistor
9012M Silicon PNP transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

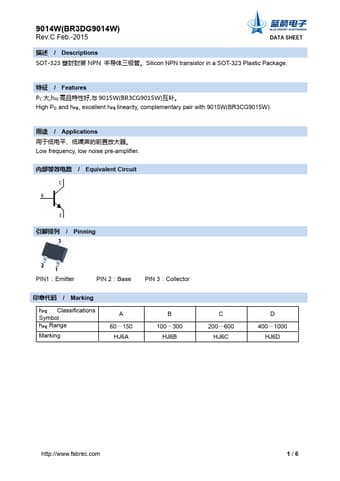

9014W(BR3DG9014W) Rev.C Feb.-2015 DATA SHEET / Descriptions SOT-323 NPN 。Silicon NPN transistor in a SOT-323 Plastic Package. / Features PC ,hFE , 9015W(BR3CG9015W)。 High PC and hFE, excellent hFE linearity, complementary pair with 9015W(BR3CG9015W). / Applications 、。 Low frequency, low noise pre-amplifier. / Equivalent Circuit / Pinning 3 21 PIN1：Emitter PIN 2：Base PIN 3：Collector / Marking hFE Classifications Symbol hFE Range Marking A 60～150 HJ6A B 100～300 HJ6B C 200～600 HJ6C D 400～1000 HJ6D http://www.fsbrec.com 1/6 9014W(BR3DG9014W) Rev.C Feb.
