FPXxxx Datasheet (FOX) - Standard Crystals

FPXxxx, Standard Crystals

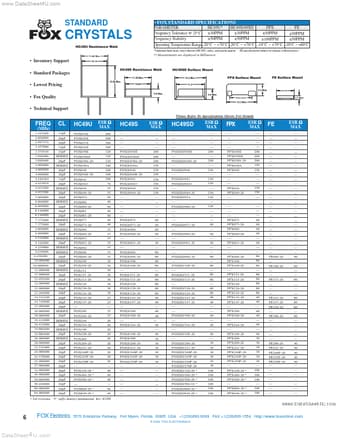

www.DataSheet4U.com STANDARD FOX STANDARD SPECIFICATIONS PARAMETER HC49U HC49S/49SD FPX FE Frequency Tolerance @ 25°C ±30PPM ±30PPM ±50PPM ±50PPM Frequency Stability ±50PPM ±50PPM ±100PPM ±50PPM Operating Temperature Range -20°C ~ +70°C -20°C ~ +70°C -10°C ~ +70°C -10°C ~ +60°C Optional third lead, vinyl sleeves (HC49U only), and mylar spacer.

All specifications subject to change without notice..

Measurements are displayed in Millimeters.

CRYSTALS Inve
