QH11121-DJ54-4F DVI Connector

SPECIFICATIONS Mechanical Mating Force: 4.50kg (9.92Lb) max. Unmating Force: 1.00~4.00kg (2.20~8.82Lb) Durability: 100 Cycles Electrical Voltage Raging: 40V (RMS) Current Rating: 1.50A Contact Resistance: 30mΩ max. Dielectric Withstanding Voltage: 500V AC/1min min. Insulation Resistance: 1000MΩ min. Physical Housing: Thermoplastic, UL 94V-0 rated in Ivory Color Contact: Copper alloy Plating: See “ORDERING INFORMATION” Operating Temperature: -20℃ to +85℃ Resistance to Soldering Heat: 250℃/15sec R.

QH11121-DJ54-4F Datasheet (101.12 KB)

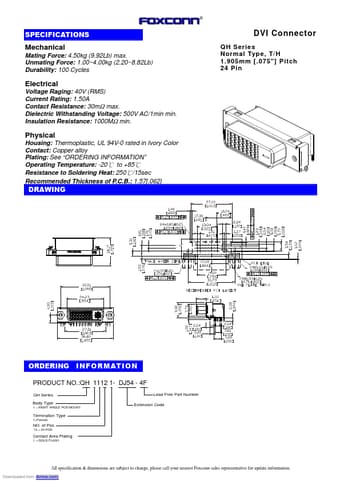

QH11121-DJ54-4F Datasheet Preview — Preview of QH11121-DJ54-4F PDF

Datasheet Details

Part number:

QH11121-DJ54-4F

Manufacturer:

FOXCONN

File Size:

101.12 KB

Description:

Dvi connector.
