RM10 POWER TRANSFORMER MODULES

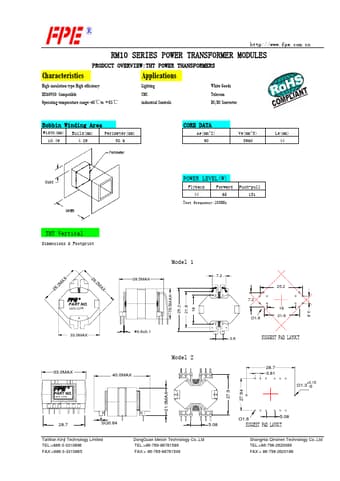

http://www.fpe.com.cn RM10 SERIES POWER TRANSFORMER MODULES PRODUCT OVERVIEW:THT POWER THANSFORMERS Characteristics Applications High insulation type High efficiency Lighting White Goods IEC60950 Compatible CMC Telecom Operating temperature range:-40℃to +85℃ industrial Controls DC/DC Converter Bobbin Winding Area Width(mm) Build(mm) Perimeter(mm) 10.49 4.29 38.6 CORE DATA Ae(mm^2) 90 Ve(mm^3) 3960 Le(mm) 44 POWER LEVEL(W) Flyback Forward 44 65 Test frequency:100KHz Push-pul.

RM10 Datasheet (179.51 KB)

RM10 Datasheet Preview — Preview of RM10 PDF

Datasheet Details

Part number:

RM10

Manufacturer:

FPE

File Size:

179.51 KB

Description:

Power transformer modules.
