RM100CA-XXF Datasheet - Mitsubishi Electric Semiconductor

RM100CA-XXF FAST RECOVERY DIODE MODULE

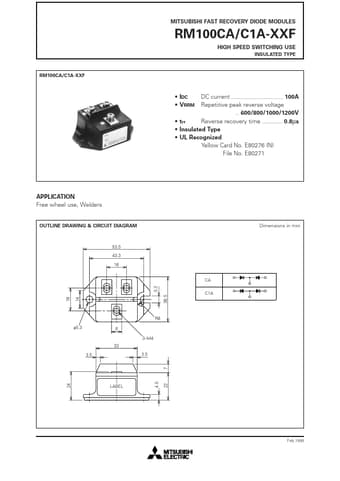

MITSUBISHI FAST RECOVERY DIODE MODULES RM100CA/C1A-XXF HIGH SPEED SWITCHING USE INSULATED TYPE RM100CA/C1A-XXF DC current 100A Repetitive peak reverse voltage .. 600/800/1000/1200V trr Reverse recovery time 0.8µs Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 IDC VRRM APPLICATION Free wheel use, Welders OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 53.5 43.3 16 CA 5.3 R6 φ5.3 8 3 M4 33 3.5 3.5 7 .

RM100CA-XXF_MitsubishiElectricSemiconductor.pdf

Preview of RM100CA-XXF PDF
RM100CA-XXF Datasheet Preview Page 2 RM100CA-XXF Datasheet Preview Page 3

Datasheet Details

Part number:

RM100CA-XXF

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

48.44 KB

Description:

Fast recovery diode module.
