FT230XQ-xxxx, FT230X Datasheet - FTDI

FT230XQ-xxxx, FT230X, USB to BASIC UART

FT230X USB TO BASIC UART IC Version 1.3 Document No.: FT_000566 Clearance No.: FTDI# 260 Future Technology Devices International Ltd.FT230X (USB to .
of each function please refer to Section 4.

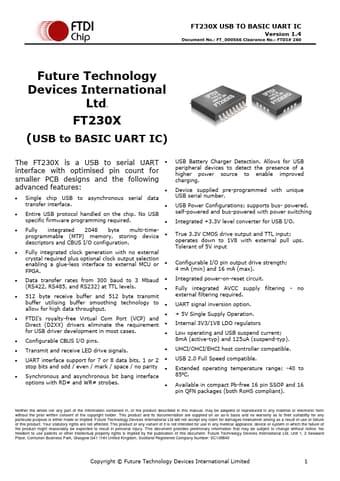

datasheet Preview Page 1 from Datasheet4u.com

FT230X-FTDI.pdf

FT230XQ-xxxx Datasheet Preview — This datasheet PDF includes multiple part numbers: FT230XQ-xxxx, FT230X. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

FT230XQ-xxxx, FT230X

Manufacturer:

FTDI

File Size:

685.53 KB

Description:

USB to BASIC UART

Note:

This datasheet PDF includes multiple part numbers: FT230XQ-xxxx, FT230X.
Please refer to the document for exact specifications by model.

Features

* Single chip USB to asynchronous serial data transfer interface.
* Entire USB protocol handled on the chip. No USB specific firmware programming required.
* Fully integrated 2048 byte multi-timeprogrammable (MTP) memory, storing device descriptors and CBUS I/O configuration.

Applications

* FT230X USB TO BASIC UART IC Version 1.3 Document No. : FT_000566 Clearance No. : FTDI# 260
* USB to RS232/RS422/RS485 Converters
* Upgrading Legacy Peripherals to USB
* Utilising USB to add system modularity
* Incorporate USB interface to enable PC transfers for development system co
